Survey Step

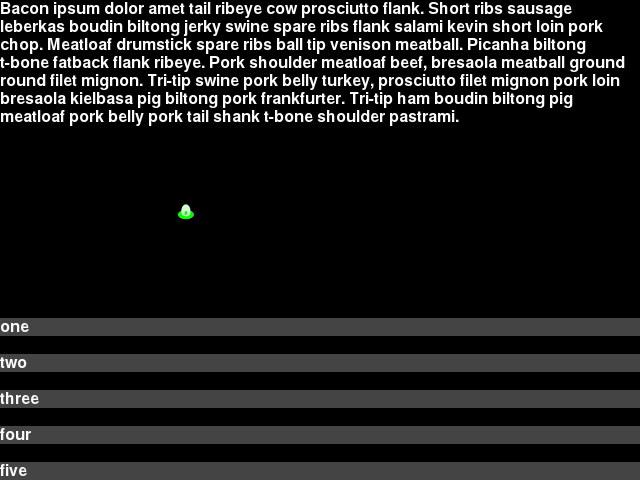

The Survey step prompts the participant to choose the answer from a pre-determined list of answers.

The prompt, and list of answers are configurable.

JSON Configuration for Survey Step

Below is sample JSON for a survey step will all the options specified.

{
    "action": "survey",
    "duration": 30.0,
    "trigger_count": 10,
    "prompt": "This is the prompt. This is the prompt. This is the prompt. This is the prompt.",
    "options": ["one","two","three","four","five"]
},

duration

The number of seconds to show the step for. When omitted, a “Next” button is added below the bottom option that allows the player to advance to the next step.

trigger_count

The number of incoming trigger pulses until this step automatically advances. See Trigger Inputs for how to configure input triggers. When omitted, a “Next” button is added below the bottom option that allows the player to advance to the next step.

prompt

The survey question. This can contain newlines and blank lines and will display them. No other special formatting is available.

options

The list of options to choose from. There isn’t a hard limit on number but they can end up overlapping the prompt or going off screen. The text you enter will be clipped if it is too long to fit on screen.

Per-frame log

The per-frame CSV log created with the –log-filename FILENAME command-line switch has two columns for the state of the survey question step.

survey_answer

The text of the selected survey answer

survey_prompt

The question/prompt text shown to the player on the current survey step.

The per-frame log records one row per-frame so will record rows before the player has selected an answer, and will also record every answer they selected before advancing on to the next step.

Survey log file

The players choices for survey questions can also be saved in a CSV file that saves one row per survey question step completed. Run the game with the --survey-log-filename SURVEY_LOG_FILENAME command-line switch to save the survey question responses for the current participant to the CSV file named SURVEY_LOG_FILENAME.

The full list of columns in this file are the following:

subject_number

from --subject-number SUBJECT_NUMBER command-line switch [other normal columns here]

subject_run

from --subject-run SUBJECT_RUN command-line switch

total_millis

number of milliseconds since the game was started when the survey step ended

step_number

number of survey step that was completed from list in JSON file specified to --script-json SCRIPT_JSON file.

step_millis

duration in milliseconds it took to complete the survey question and advance to the next step.

step_trigger_count

the count of incoming trigger pulses (serial or keyboard) that elapsed during this step.

top_screen

name of the screen that was topmost at the completion of the survey step. This should always be “Survey”

survey_prompt

The prompt configured in the survey question step JSON.

survey_answer

The selected answer chosen by the player.
